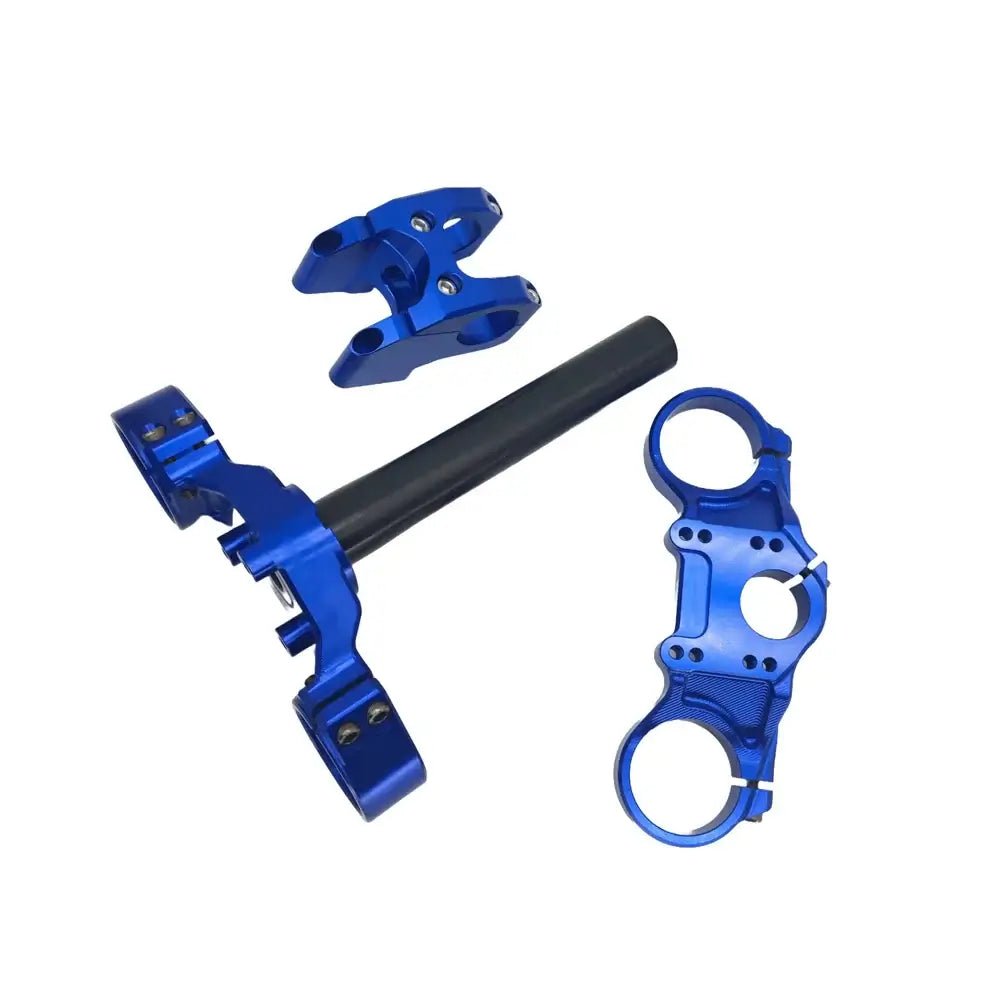

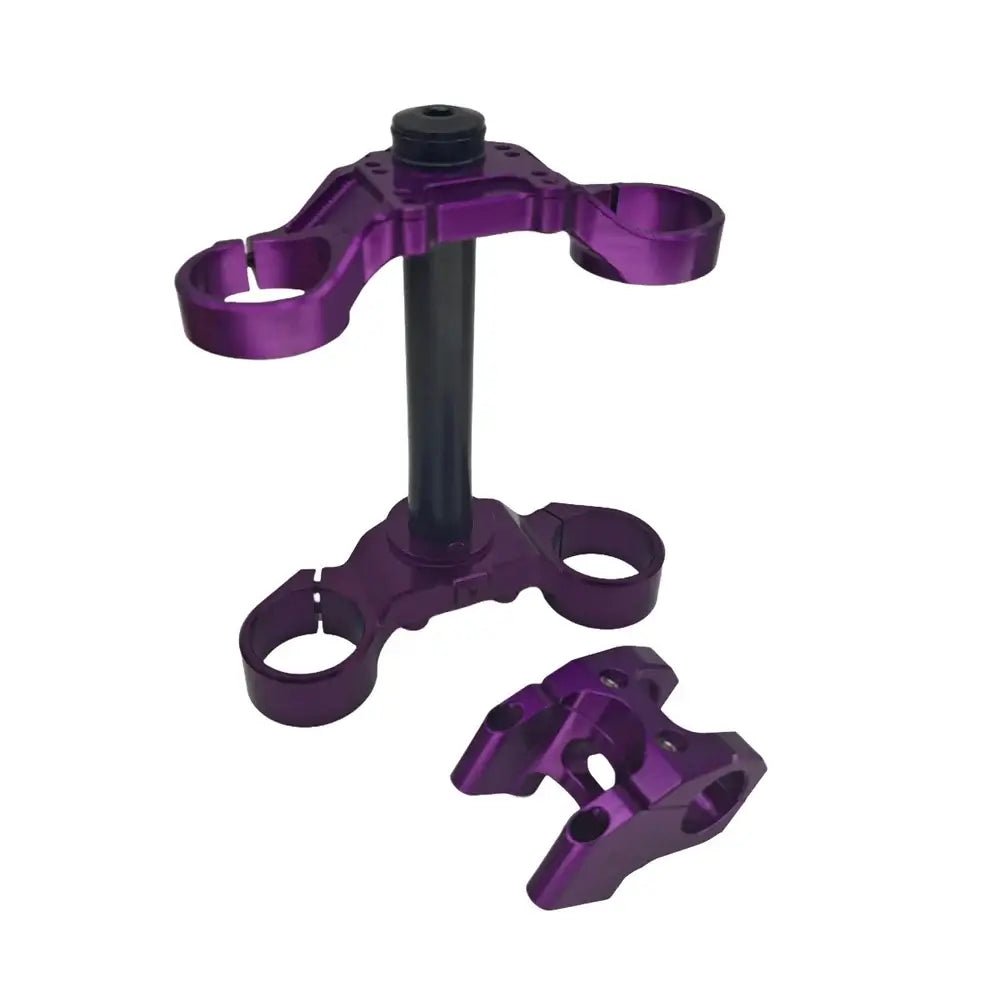

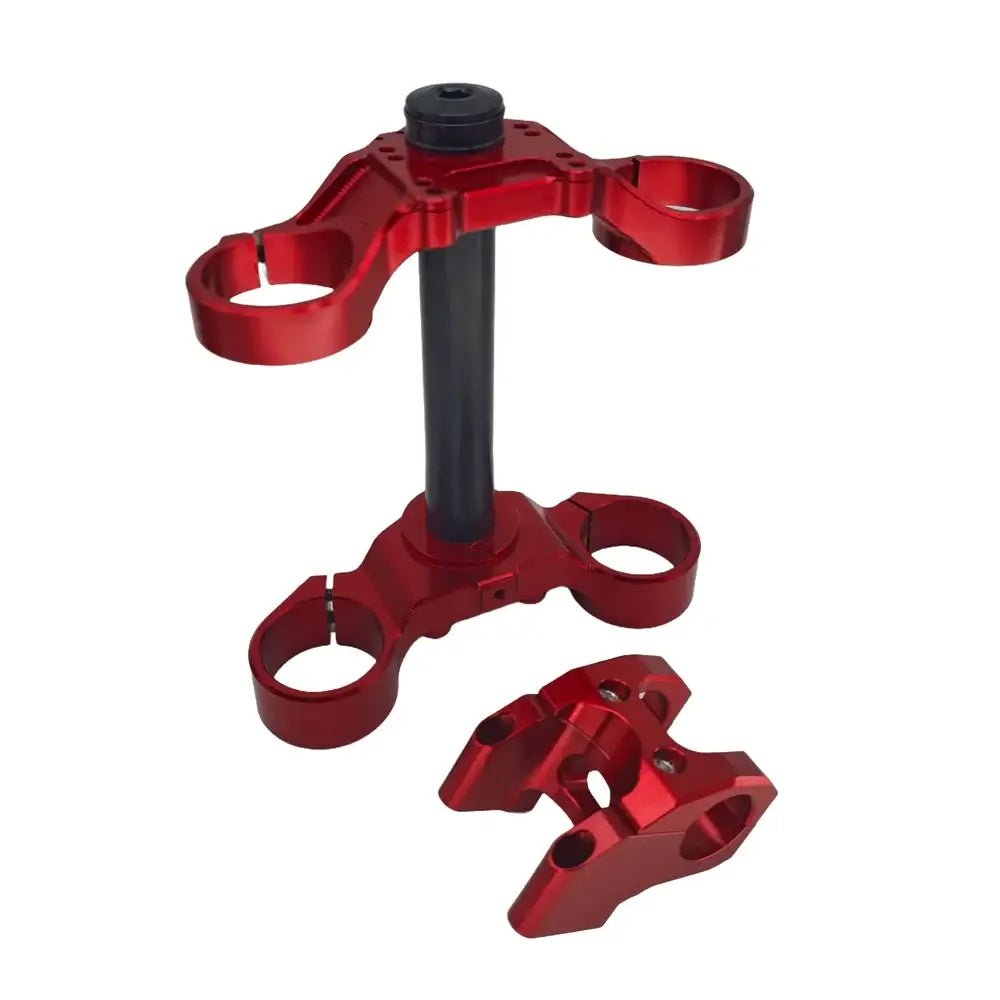

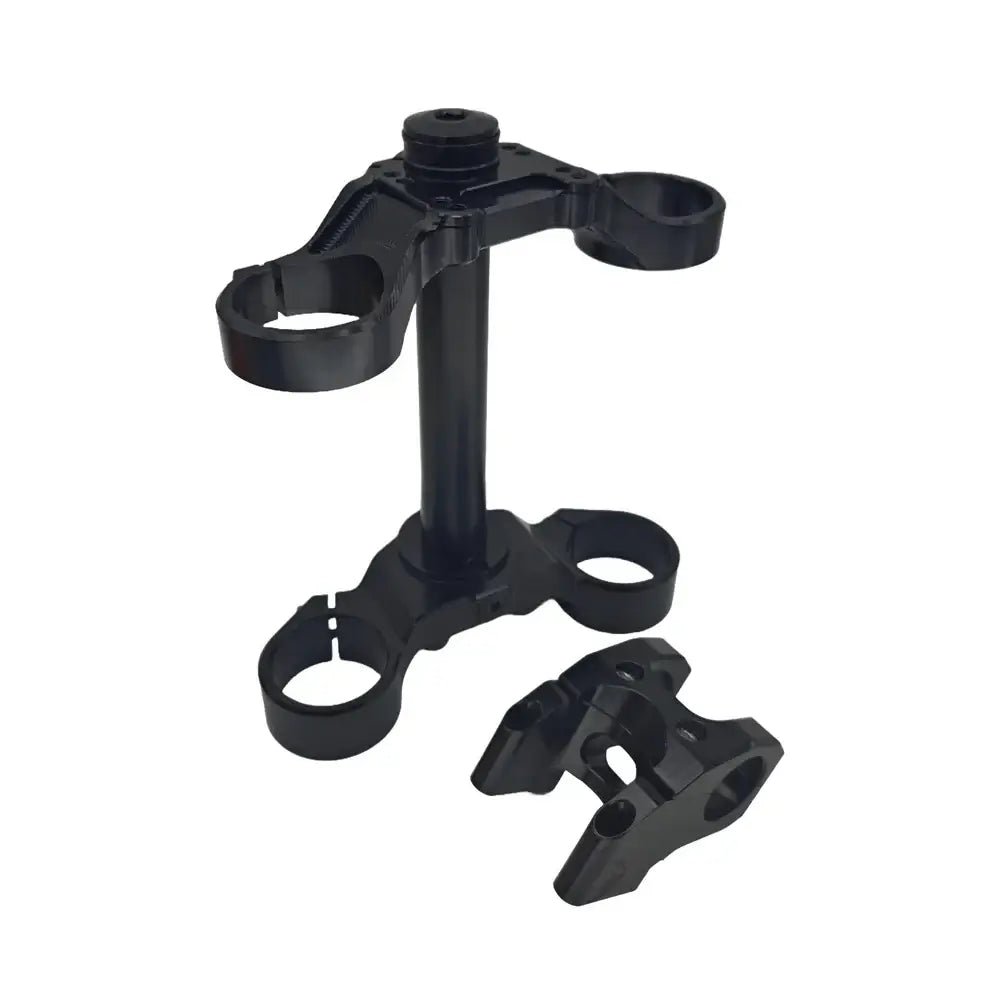

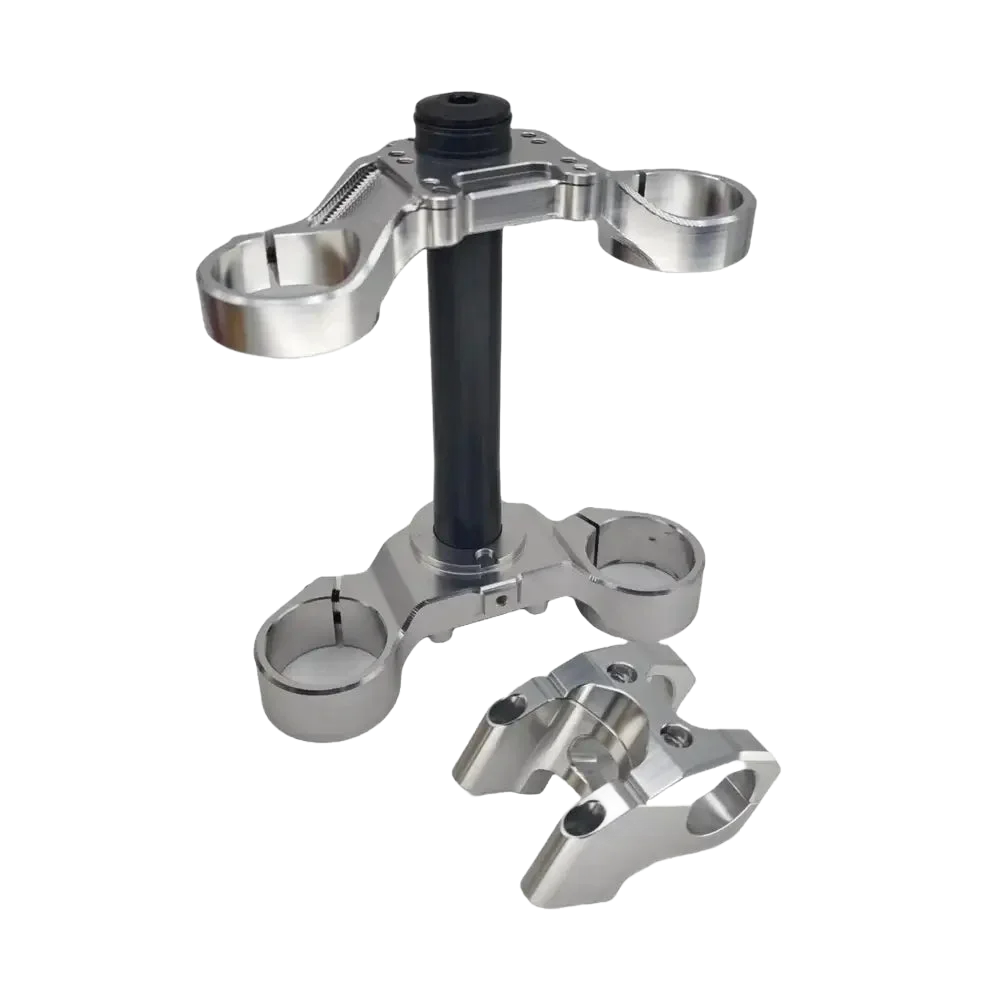

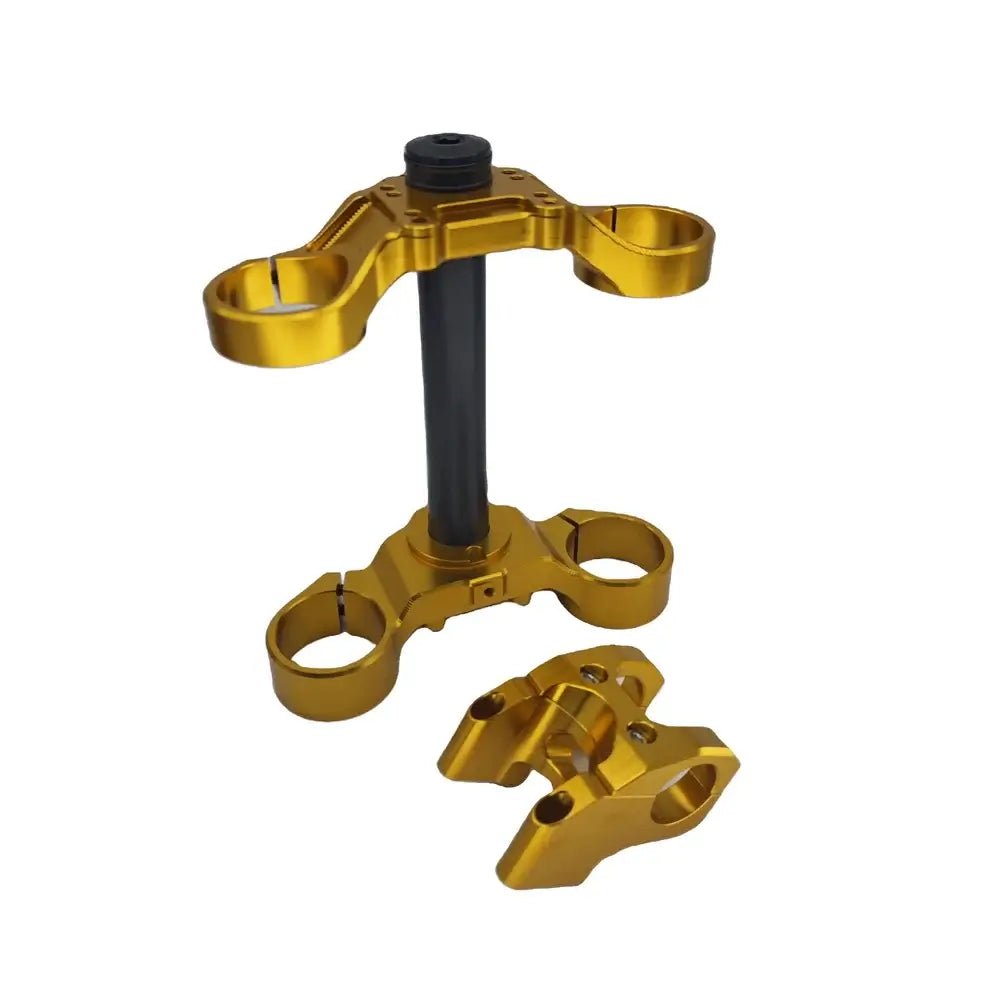

Fastace DropCrown Triple Clamp

Unlock the full potential of your Fastace fork with the DropCrown Triple Clamp. Built for riders who want more control and comfort, this clamp drops your stanchions by 20mm (3/4 inch). That means you can confidently run a 21-inch front wheel and fine-tune your riding angle without sacrificing strength or stability.

Key Features

• 20mm (3/4 inch) stanchion drop allows use of a 21-inch front wheel

• Reinforced steering tube and cap lock design. no stem lock required!

• Standard OEM Fastace fork width for perfect fitment

• Compatible with Fastace ALX13RC 2.0 and AHX12RV 3.0 forks ( or OEM Fastace forks on a Talaria X3 MX3 MX4, Eride Pro SS 1.0 / 2.0 )

• Adjust riding angle with riser spacers or riser handlebar’s

• Engineered for Surron, Talaria, Eride Pro Emoto Bikes

Specs

• Drop: 20mm / 3/4 inch

• Width: Standard OEM Fastace fork width

• Fork Compatibility: Fastace ALX13RC 2.0 / AHX12RV 3.0

• Stem Lock: Not required

Compatibility

The Fastace DropCrown Triple Clamp is built to fit:

• Talaria X3 (MX3 / MX4)

• Eride Pro SS 1.0 & 2.0

• Fastace ALX13RC 2.0 fork

• Fastace AHX12RV 3.0 fork

Install Steps

1. Loosen your fork stanchions, slide them out the bottom.

2. Remove your stock stem lock and remove the stock triple clamp

3. We recommend you install new steering bearing onto the drop crown triple clamp instead of re-using the stock bearing ( Purchase new bearings here )

4. Grease the new bearings with marine grade grease & be sure to install dust seals.

5. Slide the new triple clamp into the headtube and loose fit them

6. Slide the stanchions into the new triple clamp to get everything aligned straight

7. Tighten the triple clamp to spec, then tighten the stanchions to spec

8. Take your new feeling bike for a RIP! ride safe!

FAQs

Do I need a stem lock with this triple clamp?
No. The thicker steering tube and cap lock design eliminate the need for a separate stem lock.

Will this clamp fit the stock Surron Light Bee fork?
No. It’s made specifically for Fastace forks such as the ALX13RC 2.0 and AHX12RV 3.0, as well as the stock Fastace fork on the Talaria X3, MX3, MX4, Eride Pro SS 1.0 & 2.0

What’s the benefit of the 20mm drop?
It allows you to run a 21-inch front wheel while adjusting your riding angle for more comfort and control depending on bar height and riser setup.

Why Choose FactoryZ

Unlike competitors, our DropCrown Triple Clamp eliminates the need for extra parts like stem locks while providing stronger fitment and easier installation. Tested by real riders, it’s designed for the demands of Surron and Talaria builds pushing Fastace forks to the limit.

Ships From USA!
